550MAJ36SSC

Ordering Number:550MAJ36SSCItem Code:39583
Add To My List
 My List allows you to create a list of needs to forward to a distributor
550MAJ36SSC

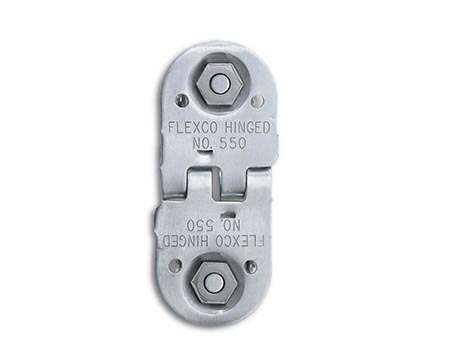

Images are representative and may not match the specific item code you are viewing.

View additional information, instruction manuals and more at the links below.

Line
Flexco® Bolt Hinged Fastening System
Family
Flexco® Size 550

Specifications

use imperialuse metric
Belt Width (in.)36
Belt Width (mm)900
Fastener MaterialMegAlloy®
Hinge Pin IncludedYes
Hinge Pin MaterialBare Stainless Cable (300 Series)
Hinge Pin Diameter (in.)7/32
Hinge Pin Diameter (mm)5.56
Package ConfigurationIndividual Plates w/Steel Nuts & Bolts
"J" Carton:
  • 2 Strips of fastener
  • 2 Pieces Filler Tubing
  • 1 Hinge Pin
  • 1 Gauge Pin
  • 2 Hinge Pin Washers
  • Required amount of nuts and bolts
  • Required amount of clips for Individual Plate “J” Cartons
Belt Thickness (in.)1/4-5/8
Belt Thickness (mm)6-16
Mechanical Fastener Rating (kN/m)52
Mechanical Fastener Rating (P.I.W.)300
Minimum Pulley Diameter (in.)9
Minimum Pulley Diameter (mm)230
Weight (kg)2.9
Weight (lbs)6.5

NOTE: Product availability and lead times vary by region. Contact your local customer service team for more information.
For additional product support, visit the related Product Line and Family pages or the Resources tab.
