6G

Ordering Number:6GItem Code:02348
Add To My List
 My List allows you to create a list of needs to forward to a distributor
6G

Images are representative and may not match the specific item code you are viewing.

View additional information, instruction manuals and more at the links below.

Line

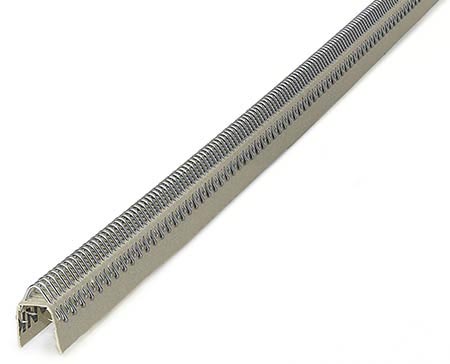

Clipper® Wire Hook Fastening System
Family
Clipper® Size Regular (54) Series Carded Hooks

Specifications

use imperialuse metric
Hook Size6
Hook StyleCarded
Belt Thickness (in.)5/16-11/32
Belt Thickness (mm)7.9-9.0
Minimum Pulley Diameter (in.)6
Minimum Pulley Diameter (mm)150
Wire Diameter (in.).054
Wire Diameter (mm)1.37
Required Pin Diameter (in.).156
Required Pin Diameter (mm)4.0
Fastener MaterialGalvanized
Strip Length (in.)12
Strip Length (mm)300
Hooks Per Card or Strip84
Hinge Pin IncludedNo
Cards or Strips per Box12
Lacing Inches/Box144
Weight (kg).98
Weight (lbs)2.2

NOTE: Product availability and lead times vary by region. Contact your local customer service team for more information.
