MSB42-2I

Ordering Number:MSB42-2IItem Code:79982
Add To My List
 My List allows you to create a list of needs to forward to a distributor
MSB42-2I

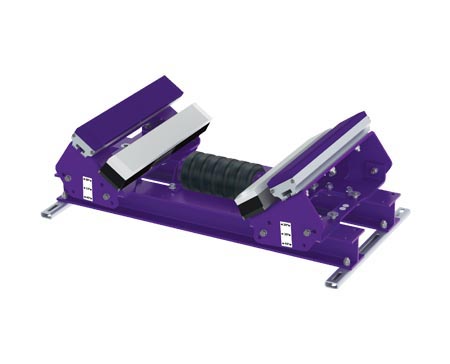

Images are representative and may not match the specific item code you are viewing.

View additional information, instruction manuals and more at the links below.

Line
Slider/Impact Beds
Family
Modular Impact Beds

Specifications

use imperialuse metric
Belt Width (in.)42
Belt Width (mm)1050
Bed TypeSlider Bed
Bed Length (FT)2
Bed Length (M).6
Tonnage Rating (ton/hr)4500
Impact Rating (kg-m)0 - 25
Impact Rating (lb-ft)0 - 200
Troughing Angle (Degrees)20°, 35°, 45°
Slider Bars Required2
Impact Bars Required4
Roll TypeImpact
Weight (kg)169.3
Weight (lbs)373.2

NOTE: Product availability and lead times vary by region. Contact your local customer service team for more information.
For additional product support, visit the related Product Line and Family pages or the Resources tab.
