Belt Support Bar Size 5

Ordering Number:112922Item Code:BSB-5
Add To My List
 My List allows you to create a list of needs to forward to a distributor

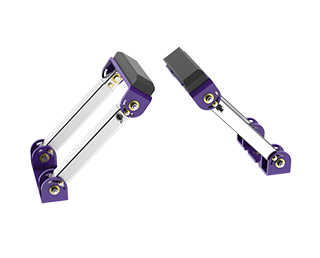

Belt Support Bar Size 5

Images are representative and may not match the specific item code you are viewing.

View additional information, instruction manuals and more at the links below.

Line
Belt Support Systems
Family
Belt Support Bar

Specifications

use imperialuse metric
Belt Width60-72in
Belt Width1500-1800mm
Troughing Angle (Degrees)20, 35 and 45 Degrees (depending on belt width)
Weight (kg)30.5
Weight (lbs)67.2

CEMA Class C

BELT WIDTH TROUGH ANGLE
in. mm 20° 35° 45°
60 1500     SIZE 5

CEMA Class D

BELT WIDTH TROUGH ANGLE
in. mm 20° 35° 45°
60 1500     SIZE 5
72 1800 SIZE 5 SIZE 5

CEMA Class E

BELT WIDTH TROUGH ANGLE
in. mm 20° 35° 45°
60 1500 SIZE 5 SIZE 5 SIZE 5
72 1800 SIZE 5 SIZE 5

NOTE: Product availability and lead times vary by region. Contact your local customer service team for more information.
For additional product support, visit the related Product Line and Family pages or the Resources tab.
