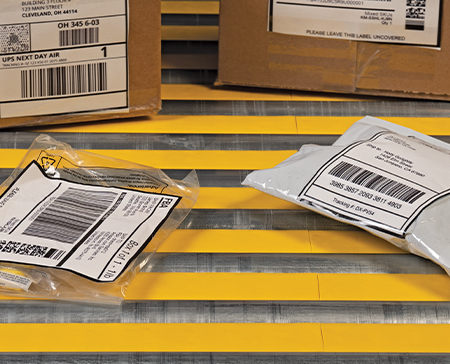

Features & Benefits
- Ideal for operations that transport a variety of packaged products – from soft and pliable to dense and compact.
- Made from proprietary low-friction material that offers superior wear and impact resistance.
- Bright yellow color makes plates easy to see and monitor.
- Available in 12” transfer plates that are easily cut to length for any roller conveyor width.
Installation
Roller Conveyor Transfer Plates (RCTP) have a snap-in-place design, making them easy to install and replace as needed.
To install*:
- Inspect roller conveyor area to ensure it is free of debris and ready for installation.
- Remove significant debris build up on rollers
- Measure width at inside of conveyor frame
- Determine number of RCTP 12" transfer plates required
- Cut transfer plates to length
- Minimum transfer plate cut length is 4" (each leg section is 1")
- Use leg notcher to cut the legs at their base just before desired length
- User plate cutter to cut transfer plate to length
- RCTP installation
- Insert RCTP using a rocking motion from the side into the roller gap. Do not insert from the end.
- Place cut end transfer plate up to adjoining transfer plate with spring tab placed against the conveyor frame
- Designed to slightly float in the gap
- Adjusting end tab may assist with length modification.
