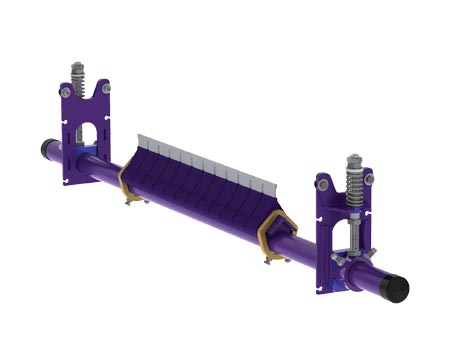

Y-Type™ Heavy-Duty with Carbide Blades

  • Y-Type™ Heavy-Duty with Carbide Blades

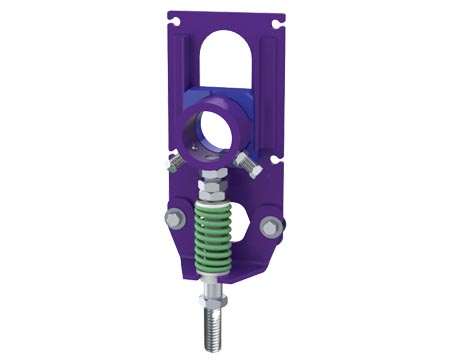

  • Push up or Pull up tensioning

TheY-Type™ Heavy-Duty with Carbide Blades is made from heavy-duty, powder-coated steel with a 2-7/8” (73 mm) diameter pole and works on reversing belts, vulcanized belts, and belts with mechanical fasteners.

Specifications

  • Maximum Belt Speed: 750 fpm (3.8 m/sec)
  • Temperature Rating: -30°F to 180°F (-35°C to 82°C)
  • Usable Blade Wear Length: 3/8" (10 mm)
  • Blade Material: Tungsten Carbide (works with mechanical fasteners)
  • 3" (75 mm) wide blade segments
  • Option to remove and replace blades individually or as a complete cartridge
  • Pole Diameter: 2-7/8" (73 mm)
  • Available for Belt Widths: 36" to 72" (900 to 1800 mm)

Installation

  • Pole Length: Pole Length: Belt width plus 54" (1350 mm). For longer requirements, see Pole Extenders under Belt Cleaner Accessories.
  • Horizontal clearance required: 5-1/4" (133 mm)
  • Vertical clearance required: 9-3/4" (248 mm)
  • To make cleaner installation easier and quicker, see Optional Mounting Kits under Belt Cleaner Accessories.
  • Products
  • Specifications
  • Instructions
  • Sales Support
Apply FiltersClose

Product Type

clear
Cleaners(6)
Replacement Parts(31)
Refine Results
Please wait while we gather your results.

Spring Length Chart

BLADE WIDTH SILVER
SPRINGS		 BLACK
SPRINGS
in.
mm
in.
mm
in.
mm
36 900 3 7/8 98 4 102
42 1050 3 3/4 95 3 7/8 98
48 1200 3 5/8 92 3 3/4 95
54 1350 3 1/2 89 3 3/4 95
60 1500 3 3/8 86 3 5/8 92
72 1800 3 1/4 83 3 1/2 89

Bold indicates preferred spring option

Spring Tensioner Selection Chart

CLEANER BLADE WIDTH SILVER
YSTHD-S		 BLACK
YSTHD-BK
Carbide 36" - 54" (900 - 1350mm) X
Carbide 60" - 72" (1500 - 1800mm)   X
