HV2

HV2

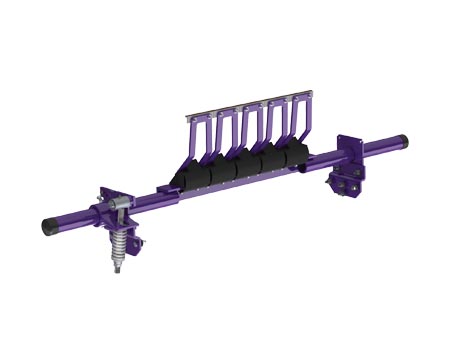

Utilizing a new cushion design, the HV2 improves on the H-Type®, which has proven performance over 20 years. The new design incorporates torsion element design and cushion adjustability so no shimming is required to ensure proper blade-to-belt contact.


Specifications

  • Maximum Belt Speed: 1500 fpm (7.5 m/sec)
  • Temperature Rating: -30°F to 180°F (-35°C to 82°C)
  • Usable Blade Wear Length: 3/8" (9 mm)
  • Blade Material: Long Life Tungsten Carbide (for vulcanized belts only)
  • HV2 Protected V-Tips & S/S Shields also available
  • Pole Diameter: 2-7/8" (73 mm)
  • Belt Widths: 18" to 72" (450 to 1800 mm)


Installation

  • Pole length: Cleaner size + 48" (1200 mm)
  • Horizontal clearance required: 7" (175 mm)
  • Vertical clearance required: Determined by suspension arm size. See specification chart.
  • Products
  • Specifications
  • Instructions
  • Sales Support
Apply FiltersClose

Product Type

clear
Cleaners(35)
Replacement Parts(35)
Refine Results
Please wait while we gather your results.

HV2 Suspension Arm Size

HEAD PULLEY DIAMETER
+ BELT & LAGGING		 HV2 ARM SIZE
in.
mm

10 - 19 250 - 475 SS
20 - 31 500 - 775 S
32 - 39 800 - 975 M
40 - 47 1000 - 1175 L
48 - 67 1200 - 1675 LL



Clearance Guidelines for Installation

SUSPENSION ARM SIZE HORIZONTAL
CLEARANCE
REQUIRED		 VERTICAL
CLEARANCE
REQUIRED

in.
mm
in.
mm
SS 8 1/4 210 12 5/8 320
S 8 1/4 210 15 3/8 390
M 8 1/4 210 16 5/8 416
L 8 1/4 210 17 1/2 445
LL 8 1/4 210 20 1/8 511

Spring Tensioner Selection Chart

HV2 CLEANER SIZE 76074
QMT-P		 76075
QMT-W		 76402
QMT-S
18" (450 mm) SS,S,M;
24” (600 mm) S,S; 30" SS,S		 X
24" (600 mm) M;
30" (750 mm) M;
36" (900 mm) SS-L;
42” (1050 mm) SS-L;
48" (1200 mm) SS-LL;
54" (1350 mm) S-L;
60" (1500 mm) S; 72” S		   X
54" (1350 mm) LL;
60" (1500 mm) M-LL;
72" (1800 mm) M-LL		     X

See Installation Manual under Instructions for Spring Length Chart.
