H-Type® with Protected V-Tips

  • H-Type with Protected V-Tips

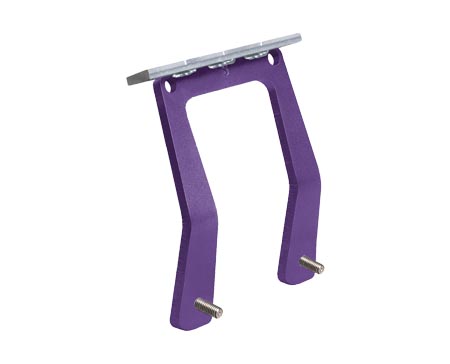

  • Protected Arm

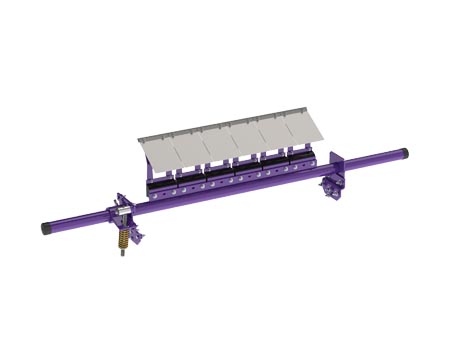

  • H-Type Protected Tips with Shields
The original H-Type® with Protected V-Tips has been proven as an efficient precleaner for over 20 years in material handling applications such as coal, iron ore, bauxite, and hard rock mining with vulcanized belts. The Protected V-Tips offer long-lasting blade life in abrasive applications.

The Flexco Mineline® endorsement means it's proven in heavy-tonnage applications that test the strength and durability of your conveyor system.


Specifications

  • Maximum Belt Speed: 1000 fpm (5 m/sec)
  • Temperature Rating: -30°F to 180°F (-35°C to 82°C)
  • Usable Blade Wear Length: 3/8" (9 mm)
  • Blade Material: Long Life Tungsten Carbide (for vulcanized belts only)
  • Pole Diameter: 2-7/8" (73 mm)
  • Belt Widths: 18" to 72" (450 to 1800mm)


Installation

  • Pole length: Cleaner size + 48" (1200 mm)
  • Horizontal clearance required: 7" (175 mm)
  • Vertical clearance required: Determined by suspension arm size. See specification chart.
  • Products
  • Specifications
  • Instructions
  • Sales Support
Apply FiltersClose

Product Type

clear
Cleaners(31)
Replacement Parts(55)
Refine Results
Please wait while we gather your results.

Suspension Arm Size

HEAD PULLEY DIAMETER
+ BELT & LAGGING		 SUSPENSION
ARM SIZE
in.
mm

10 - 19 250 - 475 SS
20 - 31 500 - 775 S
32 - 39 800 - 975 M
40 - 47 1000 - 1175 L
48 - 67 1200 - 1675 LL



Clearance Guidelines for Installation

SUSPENSION ARM SIZE HORIZONTAL
CLEARANCE
REQUIRED		 VERTICAL
CLEARANCE
REQUIRED

in.
mm
in.
mm
SS 7 175 13 325
S 7 175 15 375
M 7 175 16 1/2 413
L 7 175 18 1/2 463
LL 7 175 22 550



Spring Tensioner Selection Chart

HVP CLEANER SIZE 76074
QMT-P		 76075
QMT-W		 76402
QMT-S

18" (450 mm) S, M;
24"- 30" (600 mm - 750 mm) S

 X

24"- 30" (600 mm - 750 mm) M;
36"- 48" (900 - 1200 mm), 54" (1350 mm) S, M, L;
60" (1500 mm) S

   X

54" (1350 mm) LL;
60" (1500 mm) M, L, LL; 72" (1800 mm)

     X

See Installation Manual under Instructions for Spring Length Chart.
