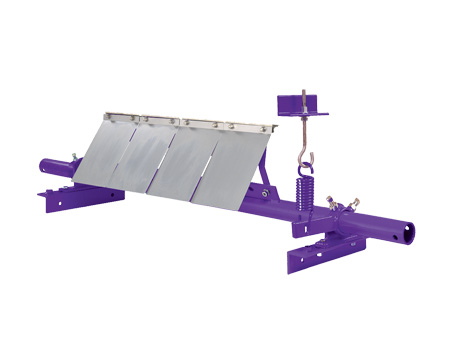

H-Type® High-Temp with V-Tips

H-Type® High-Temp with V-Tips
The H-Type® High-Temp with V-Tips has the ability to withstand ambient temperatures up to 400° F (204° C) and spikes up to 450° F (232° C). It features stainless steel tip shields for ultimate blade protection.


Specifications

  • Maximum Belt Speed: 1000 fpm (5 m/sec)
  • Temperature Rating: Up to 400°F (204°C) with spikes to 450°F (232°C)
  • Usable Blade Wear Length: 3/8" (9 mm)
  • Blade Material: Long Life Tungsten Carbide (for vulcanized belts only)
  • Pole Diameter: 2-3/8" (60 mm)
  • Belt Widths: 18" to 72" (450 to 1800mm)

Installation

  • Pole length: Cleaner size + 48" (1200 mm)
  • Horizontal clearance required: 7" (175mm)
  • Vertical clearance required: Determined by suspension arm size. See specification chart.
  • Products
  • Specifications
  • Instructions
  • Sales Support
Apply FiltersClose

Product Type

clear
Cleaners(15)
Replacement Parts(41)
Refine Results
Please wait while we gather your results.

Suspension Arm Size

HEAD PULLEY DIAMETER
+ BELT & LAGGING		 SUSPENSION
ARM SIZE
in.
mm

8 - 15 200 - 375 SS
16 - 27 400 - 675 S
28 - 35 700 - 875 M



Clearance Guidelines for Installation

SUSPENSION ARM SIZE HORIZONTAL
CLEARANCE
REQUIRED		 VERTICAL
CLEARANCE
REQUIRED

in.
mm
in.
mm
SS 7 175 13 325
S 7 175 15 375
M 7 175 16 1/2 413
L 7 175 18 1/2 463
LL 7 175 22 550
