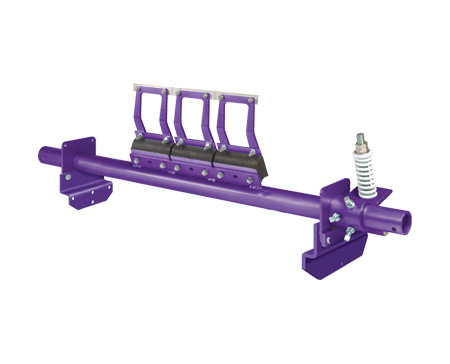

H-Type® with V-Tips

H-Type® with V-Tips

The original H-Type® with V-Tips has been a proven as an efficient precleaner for over 20 years in material handling applications such as coal, iron ore, bauxite, and hard rock mining with vulcanized belts.

The Flexco Mineline® endorsement means it's proven in heavy-tonnage applications that test the strength and durability of your conveyor system.



Specifications

  • Maximum Belt Speed: 1000 fpm (5 m/sec)
  • Temperature Rating: -30°F to 180°F (-35°C to 82°C)
  • Usable Blade Wear Length: 3/8" (9 mm)
  • Blade Material: Long Life Tungsten Carbide (for vulcanized belts only)
  • Pole Diameter: 2-7/8" (73 mm)
  • Belt Widths: 18" to 72" (450 to 1800 mm)


Installation

  • Pole length: Cleaner size + 48" (1200 mm)
  • Horizontal clearance required: 7" (175 mm)
  • Vertical clearance required: Determined by suspension arm size. See specification chart.
  • Products
  • Specifications
  • Instructions
  • Sales Support
Apply FiltersClose
Refine Results
Please wait while we gather your results.

Suspension Arm Size

HEAD PULLEY DIAMETER
+ BELT & LAGGING
SUSPENSION
ARM SIZE
in.
mm

10 - 19 250 - 475 SS
20 - 31 500 - 775 S
32 - 39 800 - 975 M
40 - 47 1000 - 1175 L
48 - 67 1200 - 1675 LL



Clearance Guidelines for Installation

SUSPENSION ARM SIZE HORIZONTAL
CLEARANCE
REQUIRED
VERTICAL
CLEARANCE
REQUIRED

in.
mm
in.
mm
SS 7 175 13 325
S 7 175 15 375
M 7 175 16 1/2 413
L 7 175 18 1/2 463
LL 7 175 22 550



Spring Tensioner Selection Chart

HV CLEANER SIZE 76074
QMT-P
76075
QMT-W
76402
QMT-S

18" (450 mm) SS, S, M;
24"- 30" (600 mm - 750 mm) SS &S

X

24"- 30" (600 mm - 750 mm) M;
36"- 48" (900 - 1200 mm), 54" (1350 mm) S, M, L;
60" (1500 mm) S

  X

54" (1350 mm) LL;
60" (1500 mm) M, L, LL; 72" (1800 mm)

    X

See Installation Manual under Instructions for Spring Length Chart.
